Hardware features

What can you find on Brian computer?

Front side

• 320x240px LCD color touch screen
• Central knob, clickable and turnable
• Four buttons on the sides
• Knob and buttons have programmable RGB LEDs

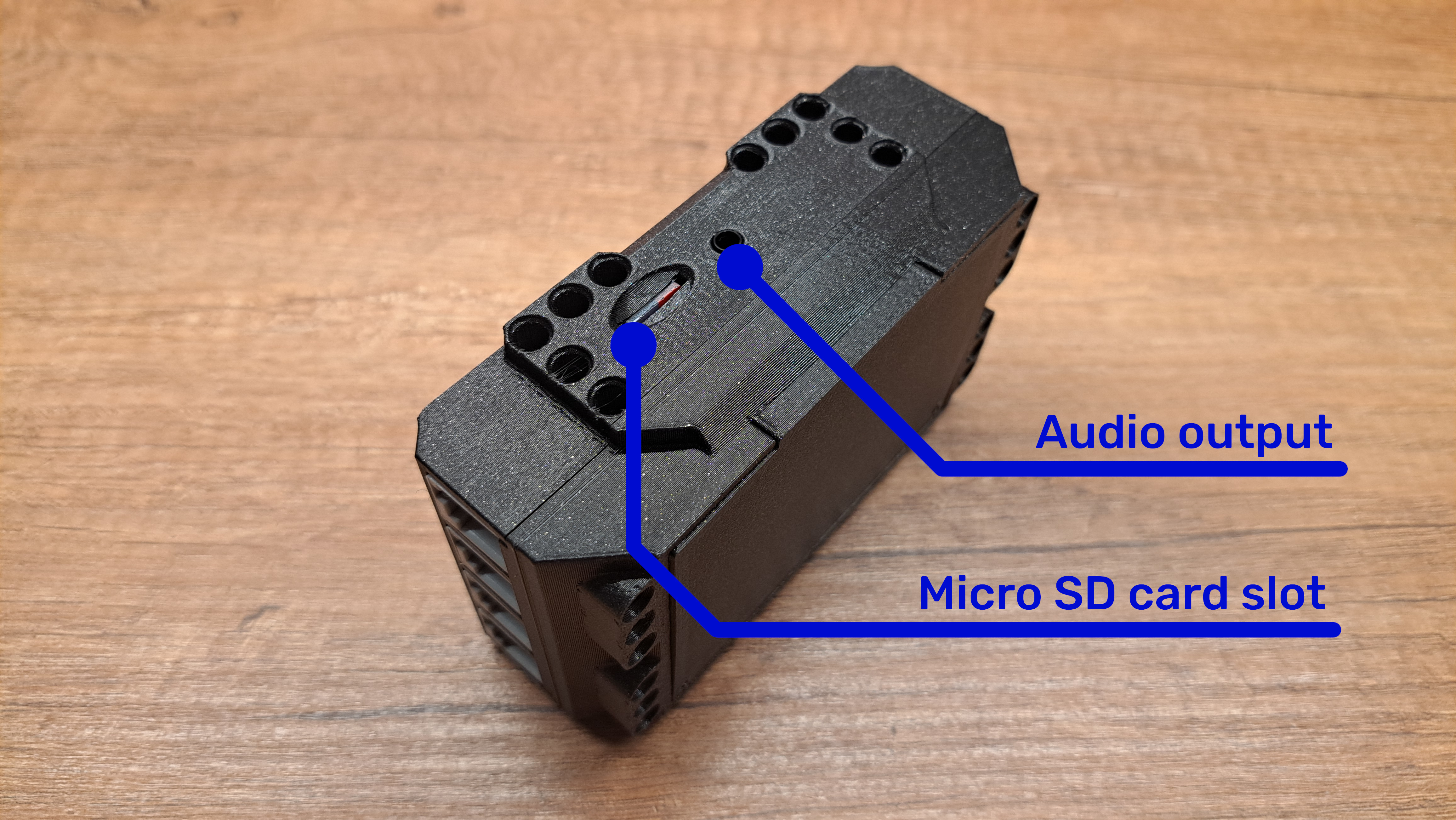

Right side

• 3.5mm jack for audio output; mono output split to left and right channel, no microphone
• Slot for micro SD cards, containing user programs and files

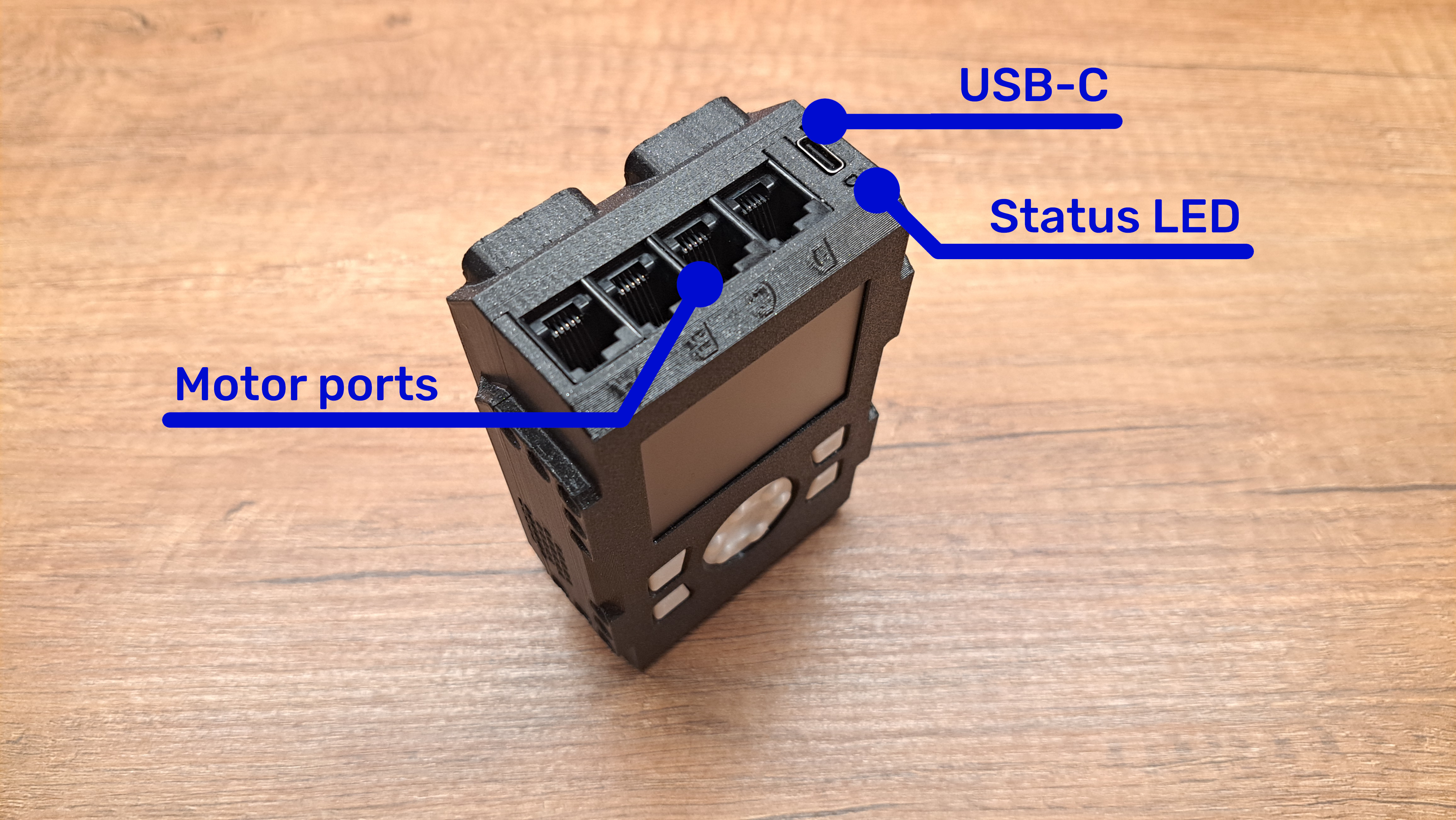

Top side

• USB-C connector; for charging and programming
• Charging status led indicator
• 4 motor ports:

Bottom and left side

• 4 sensor ports:
• Built in speaker; active only when no jack is connected
